TONG FOR "I" PROFILES - ARMED
Type: NIPR Q/A1-A2

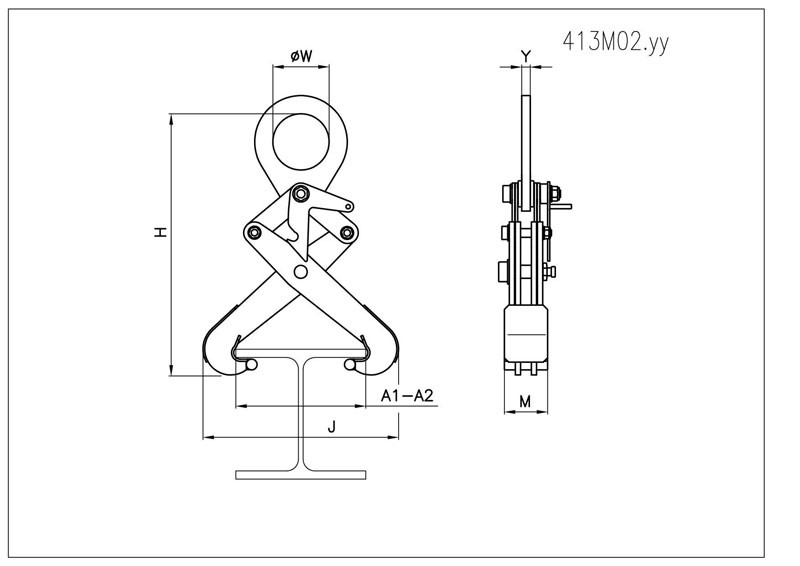

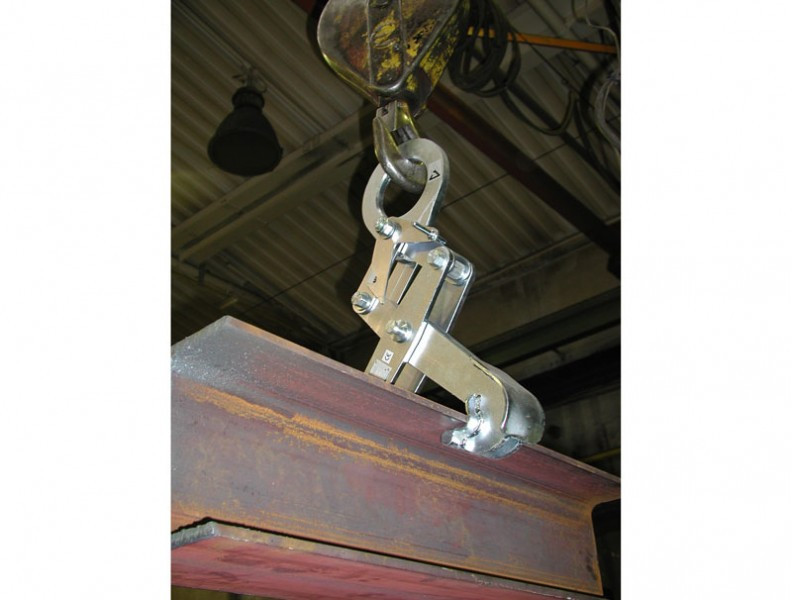

Tong for "I" profiles - armed - NIPR Q/A1-A2 - serve for hanging manipulation with "I" or "H" profiles with max. load capacity of Q kg.
Code |
Q [kg] |
A2 [mm] |
A1 [mm] |
W [mm] |
Y [mm] |
M [mm] |
J [mm] |
H [mm] |
G [kg] |
Type [NIPR] |
413M02.01 | 2000 | 200 | 60 | 80 | 25 | 100 | 400 | 500 | 12 | 2000/60-200 |
413M02.02 | 2500 | 320 | 150 | 95 | 30 | 100 | 550 | 520 | 16 | 2500/150-320 |
413M02.03 | 3200 | 320 | 150 | 130 | 30 | 100 | 550 | 540 | 23 | 3200/150-320 |
413M02.04 | 3200 | 420 | 200 | 130 | 30 | 100 | 650 | 660 | 25 | 3200/200-420 |
413M02.05 | 5000 | 200 | 60 | 130 | 30 | 100 | 530 | 460 | 28 | 5000/60-200 |
413M02.06 | 5000 | 320 | 150 | 130 | 30 | 100 | 550 | 540 | 30 | 5000/150-320 |
413M02.07 | 5000 | 420 | 200 | 130 | 30 | 100 | 650 | 660 | 32 | 5000/200-420 |
